Custom Integrations | Fluix + is an integration platform where you can build custom integrations between your cloud apps. Project management, payment, and other business processes can be automated in minutes, with no IT help required.

You can connect Fluix with 200+ applications with the help of, both one-to-one, or multistep integrations. Let’s check how it works on a simple integration of Google Sheets with Fluix. The data, collected in mobile forms in the Fluix app will be automatically submitted to the spreadsheets for further processing and analysis.

5 steps to set up the integration

To test the integration, you’ll need a Fluix Core license, or a free 14-day trial account, an license starting from a Professional plan, and access to Google Sheets.

Step 1 – Creating a Bot in Trigger app

To start creating an integration (they call them Bots), you need to choose the apps you need to connect. Every Bot has one Trigger app (the one that starts the process) and one or more Action apps (where the action is performed). In our case, the trigger app is Fluix that sends the data from the submitted form to the Action app – Google Sheets.

Let’s start with adding Fluix as a Trigger App:

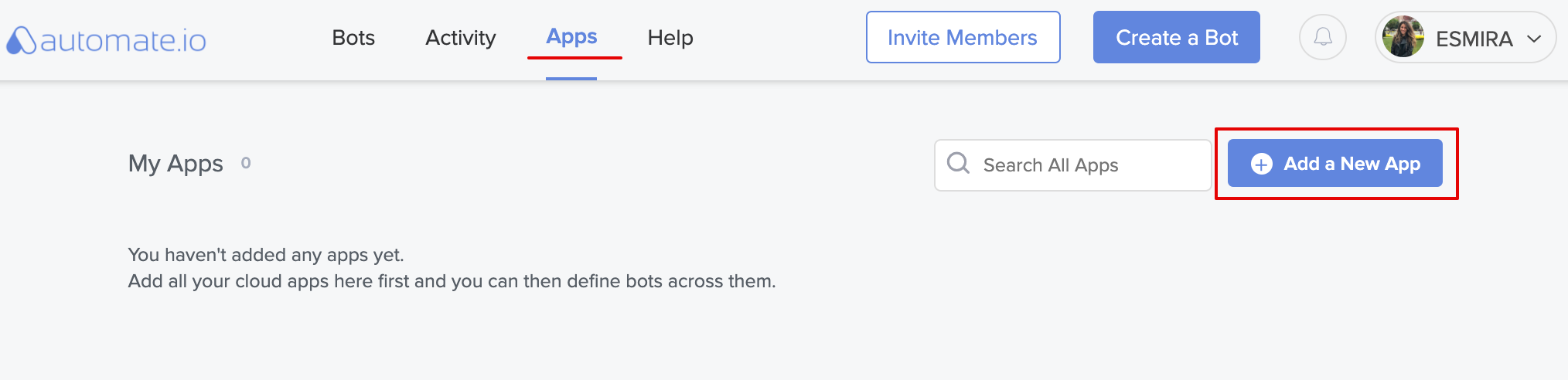

1. In your account, open the Apps tab, click the ‘Add a New App’ button in the top right corner and select Google Sheets app:

After selecting the app, you will be asked to authorize your Google Sheets account and allow to access your Google account.

2. Go to the Bots tab and click the ‘Create a Bot’ button at the top of your dashboard:

3. Give a name to your Bot. Let’s say ‘Fluix leads to Google Sheets’, as we are using these two apps in this Bot.

4. Connect the Trigger app:

Step 2 – Configuring a Fluix workflow

In Fluix, you’ll need to create a new or adjust an existing workflow that you use to collect data from forms and from where this data will be automatically extracted to Google Sheets.

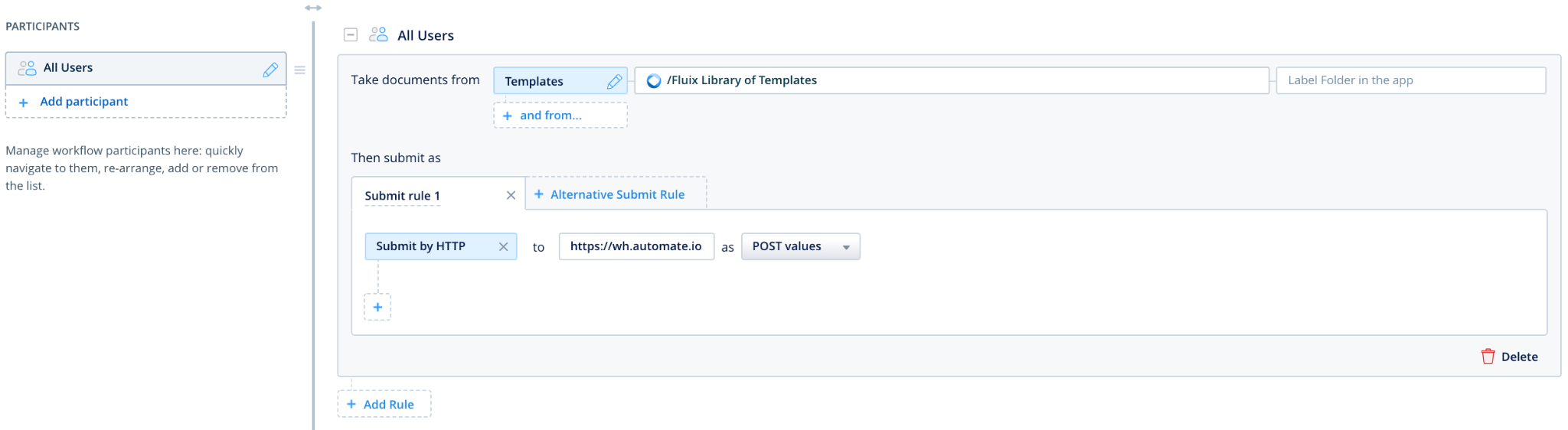

1. In the selected workflow, add submit action called ‘Submit by HTTP‘ and select ‘POST values’ as the data type:

2. Add the webhook URL to the submit action and click ‘Save Changes’ to save the workflow.

3. Come back to’s Setup Webhook window and click I’m done. You will be asked to send in some sample data from Fluix.

4. To send sample data from Fluix, go to the Fluix app on the iOS device or User App in the web browser, and submit a test document related to the workflow you’ve just configured.

Step 3 – Creating a Bot in Configuring the Webhook

1. After sending the sample data, your fields from the Fluix form will appear here. If everything looks good, click Looks Good. But if you find that some important fields are missing, click Refetch Data at the bottom of the fields list. This allows you to try sending the sample data once again.

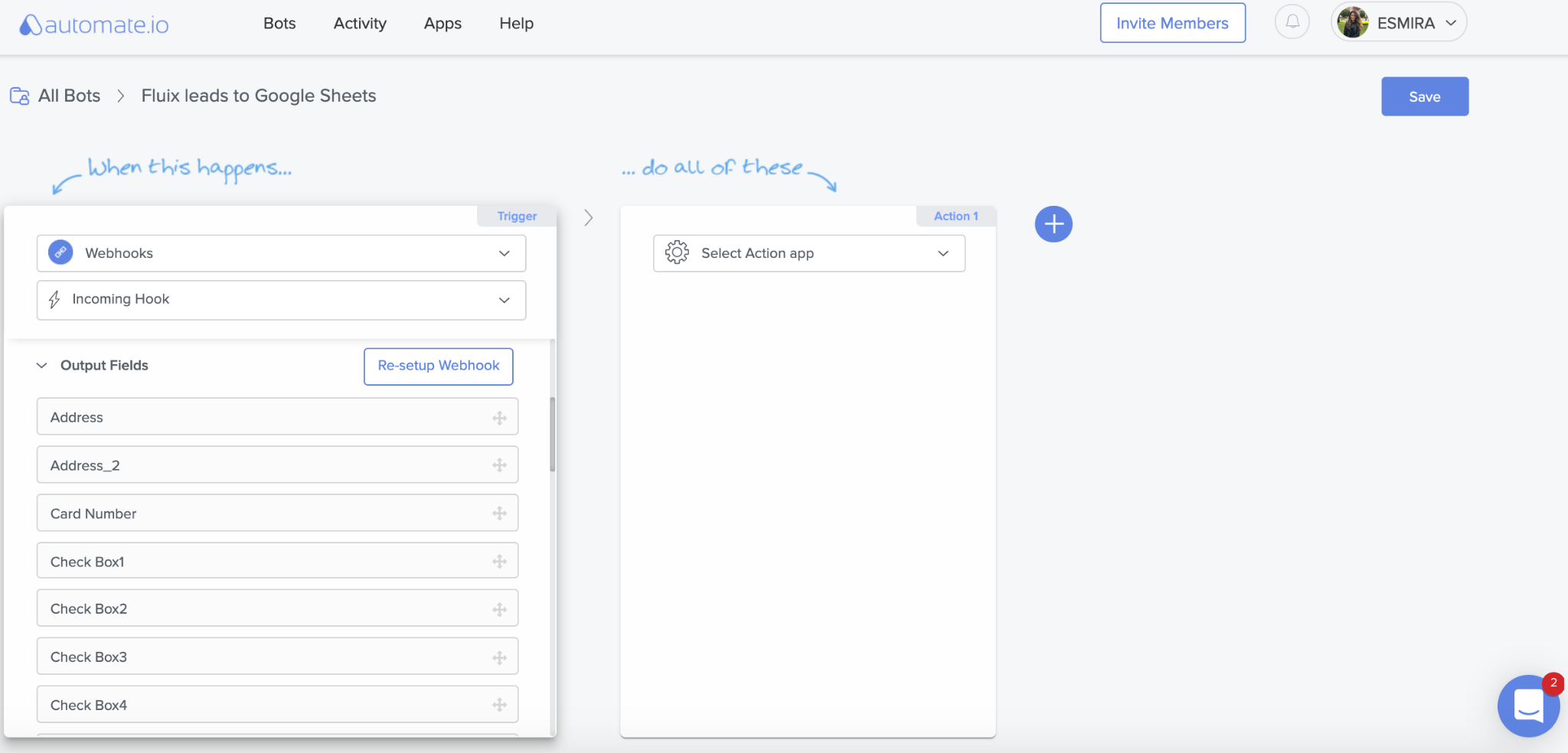

2. The fields will now show up in your Trigger’s Output Fields.

Step 4 – Creating a Bot in Connecting the Action App

Now let’s connect Google Sheets as an Action app and choose the spreadsheet and fields that need to be imported from the forms in Fluix.

1. Connect the Action app:

2. Select the Action to be done:

3. Drag and drop the required fields from Webhook’s Output Fields to the Input Fields of the Google Sheet app.

After you are done with creating your Bot, save it by clicking on the Save button on the top-right. You will see that your Bot is in an OFF state. You can turn it ON using the toggle button.

Step 5 – Testing

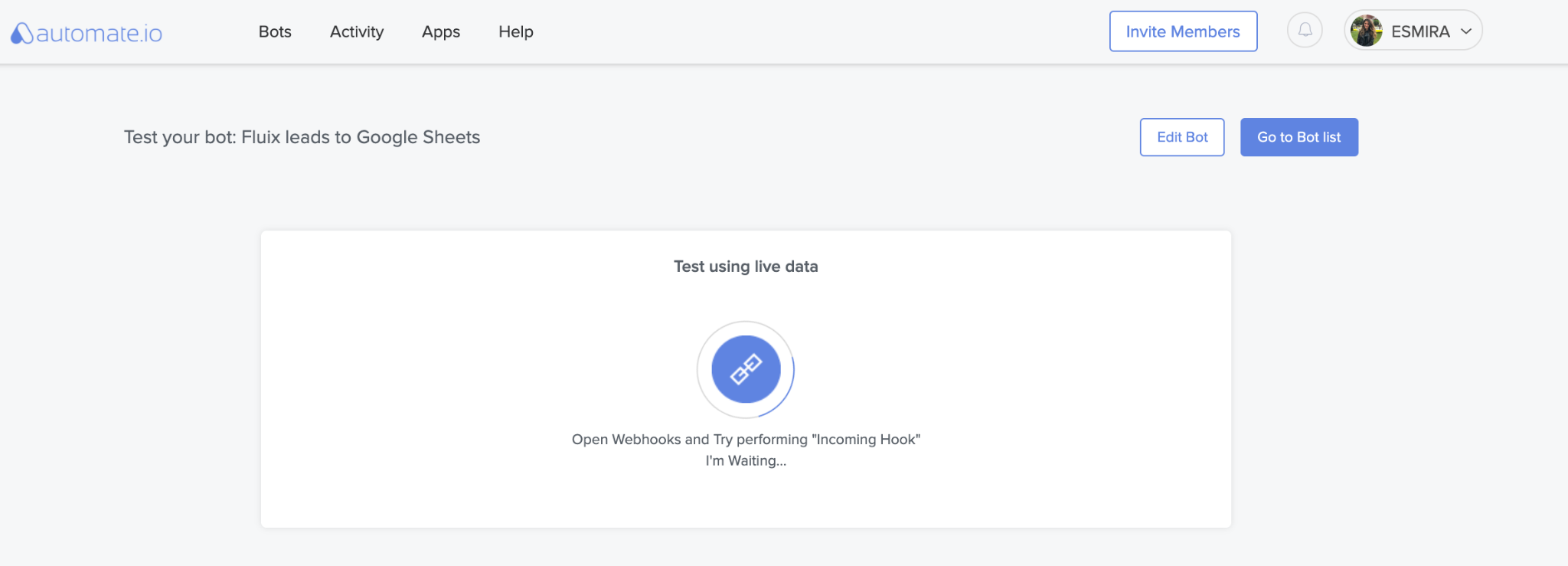

After Bot is switched on, you will be asked to test it using live data:

Go to the Fluix app and submit a test document through this workflow. Go back to, when you see the success message, it means that everything went fine and the data has already been transferred from Fluix to Google Sheets via

In case you have any questions or difficulties with setup, contact our support at and we’ll be happy to help you.

Check other Fluix integrations here.
